یو پی اس آنلاین 3/1 ترانس بیس ”15“ کاوا

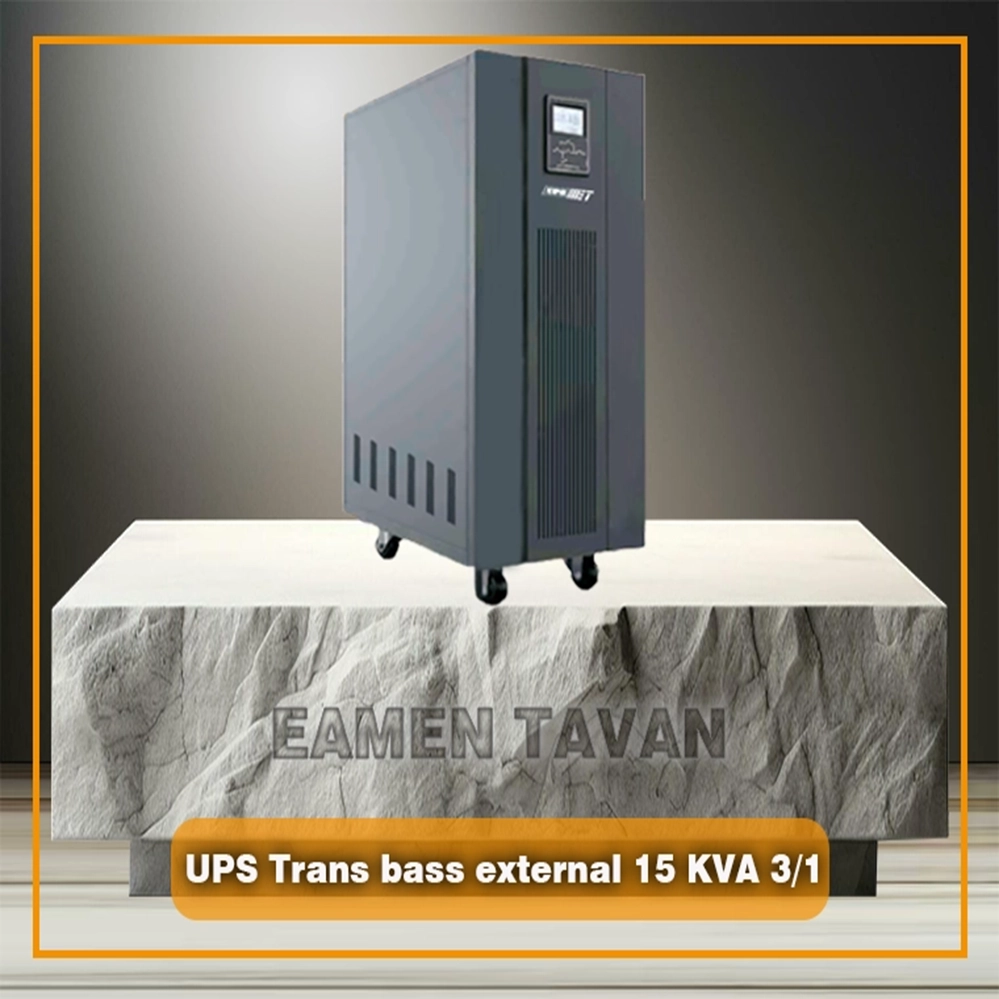

UPS Online transformer base 3/1 15kva
15000VA series HT4000T

 Online Double Conversion, transformer base 3/1 technology with stable and uninterrupted power and complete sine waveform linear and non-linear loads at maximum load consumption

 Suitable for all kinds of loads (resistive, inductive and non-linear loads etc)

 DSP (digital signal processors )control technology Effective software and hardware protection

Device dimensions: 400mm width, 815mm depth, 1100mm height (400×815×1100mm)

Net weight of the device: 210 kg

 Standard configuration with isolation transformer

 Protection: short circuits, high and low voltages, overload, reverse connection of batteries and High charge, etc.

 LCD display to show input and output voltage, load, frequency, inside temperature of the device,battery charge load

 Adjusting the output voltage ,EOD, automatic start, bypass mode and adjusting the frequency and ECO MODE through the LCD display panel

 Select current charging : 2A / 4A / 6A / 8A / 10A / 12A

 Output Power factor of 0.8 & Input power factor 0.99 and Active Power Factor Correction (Apfc)

 Overload capacity up to 105% ~ 125% for 10 min, 125% ~ 150% for 1 min ,150%~200% for 200 ms, UP to 200%for 100 ms

 Wide input frequency range for operation with variety of generators in the range of 40 to 70 Hz and proper stabilization of the output frequency of 50 Hz with a telorance of 0.1

 Connecting to Parallel card

 Communication with PC by RS232 (standard), USB / RS485 / SNMP / Dry Call (optional)

 Adjusting the output frequency at 50 and 60 Hz and having Auto frequency Sensing

 Cold Start and automatic start-up after connecting the city electricity and having settable delay

 Shut down automatically in emergency time (EPO)
