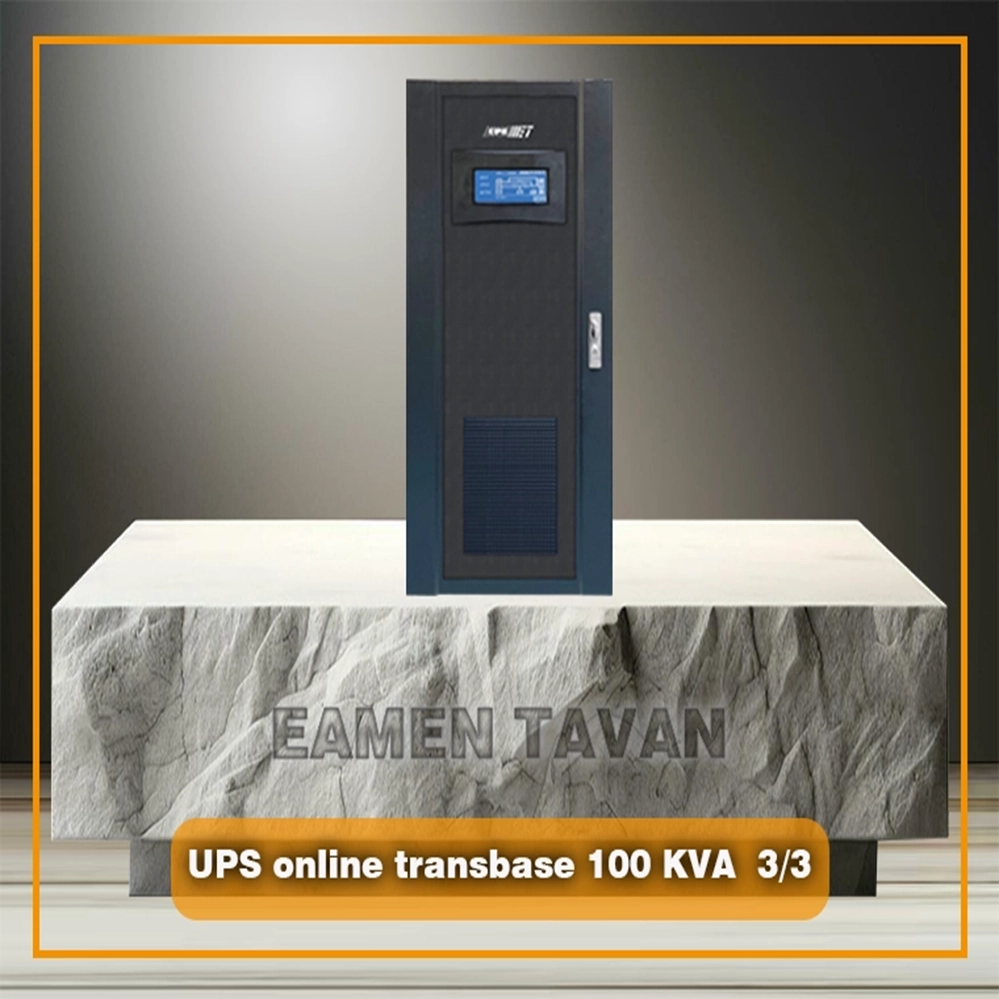

یو پی اس آنلاین 3/3 ترانس بیس ”100“ کاوا
UPS Online 3/3 transformer base 100kva
100000VA series HT5000T

UPS transformer based three-phase are the standard choice for larger installations with critical loads such as data centers, industrial applications, and medical environments, as well as protecting equipment with motors such as lifts, pumps, and fans.There are two main benefits of a transformer- based ups series HT 5000T Firstly it is generally accepted that they are more robust _here are less points of failure. Secondly, the transformer provides galvanic isolation, a separation of the input and output supplies, which protects the load from any spikes, surges, or electrical noise.
Model HT5000T monitoring and control data are shown on an easy to understand front panel display with LCD 7 inches touch featuring pushbutton controls , LCD read out for event logs and diagnostics and a mimic diagram for system status. The power protection system can be remotely monitored via RS232, RS485, dry contact or SNMP interface. The HT5000T series is available from 20kVA to 120kVA models.

Online double conversion three phase mode isolation transformer

IGBT inverter

DSP (digital signal processors )control technology Effective software and hardware protection

Output power factor 0.9

Device dimensions: 700mm width, 800mm depth, 1700mm height (700×800×1700mm)

Net weight of the device: 630 kg

100% unbalance load capability

Ensures galvanic isolation

Flexible frequency converter (50 or 60 Hz input)

Filtered, stabilized and regulated sinewave supply

An adjustable DC voltage device (360V to 384V) with flexible battery solutions

Internal manual bypass for easy maintenance without power interruption

Large display panel provides metering, statistics, alarm history and an active mimic screen

7 Inches LCD touch screen, friendly human & machine interface

With emergency shutdown (EPO) button interface

Generator compatible

N+X redundancy parallel up to 6 units (optional)

Supports battery start-up without utility power, and automatic restart after utility power returns

Front-access design (for 60 to 120 kVA models) for simplified maintenance and part replacement

Standard communication ports: RS232 and RS485

Optional SNMP communication interface
