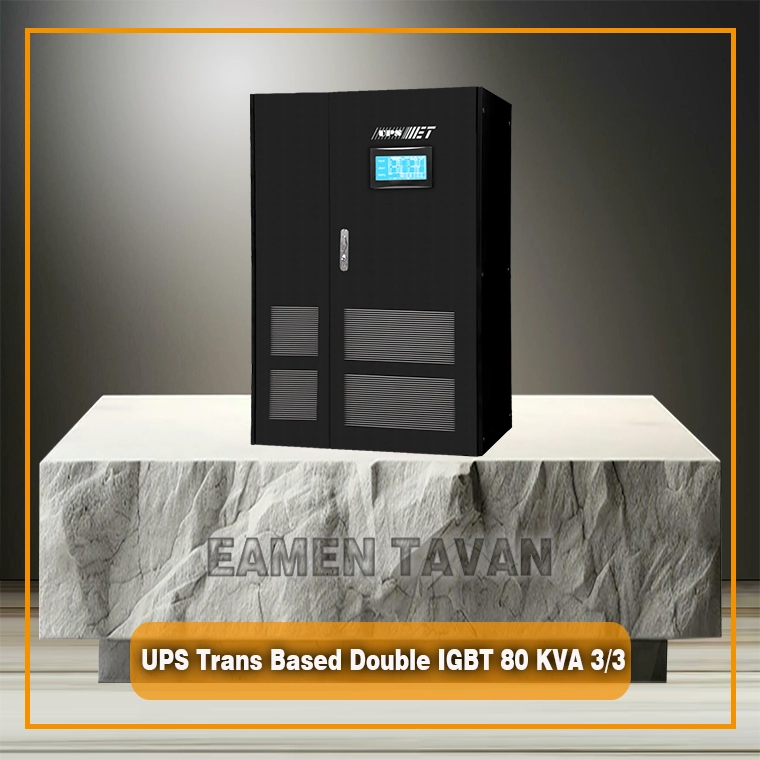

یو پی اس 3/3 ترانس بیس دابل(IGBT) “80”کاوا
UPS 3/3 Trans Based Double IGBT 80kva
80000VA series HT5000IG

This three-phase online double conversion UPS features a fully isolated input and output, equipped with IGBT technology in both the input rectifier and output inverter. It utilizes digital DSP control and PWM modulation to deliver output power with extremely low harmonic distortion, making it ideal for sensitive and critical equipment.

The HT 5000 IG Series is designed around an isolation transformer, which provides optimal galvanic isolation between the input and output. This effectively protects connected devices from all mains-borne noise, fluctuations, and electrical shocks.

Available in power ratings from 80 kVA to 500 kVA, including standard models of 80, 100, 120, 160, 200, 250, 300, 400, and 500 kVA.

Device dimensions: 800mm width, 800mm depth, 1800mm height (800×800×1800mm)

Net weight of the device: 580 kg

Online Double Conversion Transformer Based Topology, accept Dual-Mains Input

Use of a IGBT Rectifier&  Inverter eliminates the use of oversized input feeders

Output isolation transformer using winding makes strong capability with unbalanced loads is produced to comply with Standards for supplying critical loads

DSP Technology Guarantees High Reliability

Intelligent Battery Management to Prolong Battery Life Cycle

Output power factor 0.9

Input power factor > 0.99, input THDi ≤i3%, output THDV ≤i5%

7 Inches LCD touch screen, friendly human & machine interface, statistics, alarm history and an active mimic screen

With emergency shutdown (EPO and ECO) button interface

N+X redundancy parallel up to 6 units (optional)

Generator compatible

Redundant Fan Design and Independent Ventilation Enhances Durable Operation Under Harsh Environment

Intelligent self-diagnosing function, superior failure protection, large capability of history records storage

Adjustable Battery Numbers (48 to 50 pieces)
