استابلایزر 10 کاوا سروو موتور تک فاز 10 کاوا

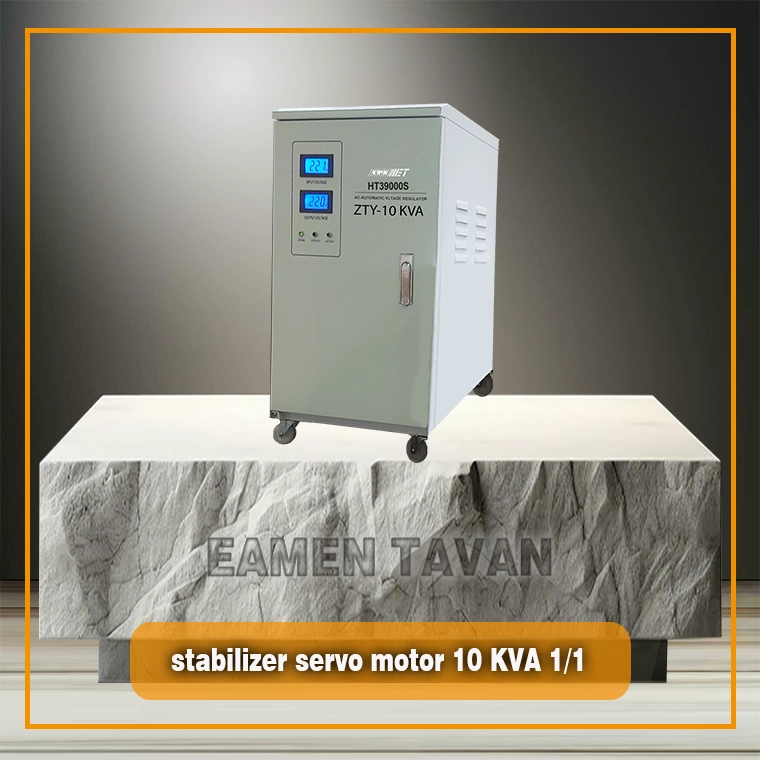

stabilizer Servo motor Single phase 10 KVA
series HT9000S5

HT9000S series high precision auto voltage regulator power supply mainly  consists of contact  auto—transformer, servo motor and automatic control circuit. When grid voltage is unstable or load varies, automatic control circuit drives the servo motor incompliance with variety of output voltage, adjusts carbon brush position on the contact auto—transformer, makes output voltage adjusted to be rated value and reaches a steady state. HT9000S series products introduce advanced technology, adopt energy-saving ring transformer and use integrated circuit and high quality components, which make them featured with small footprint, light weight, high-efficiency and energy-saving, no additional distortion of output waveform, stable performance and reliability.

stabilizer Servo motor Single phase 10 KVA

Device dimensions: width 412 , depth 244, and height 372 mm ( 412x244x372 mm)

Net weight of the device: 24 kg

High adaptability to all kinds of non-linear load such as inductive load and capacitive load

High power density, high cost-effective, wide application

Ring transformer structure, small footprint, minimum magnetic leakage, low noise

Automatic restart, turn-on delay, time-delay system and high & low voltage cut-off that provide efficient and reliable  protection for home electronic appliances against voltage problems

No serious vibration or jolt in the installation place
